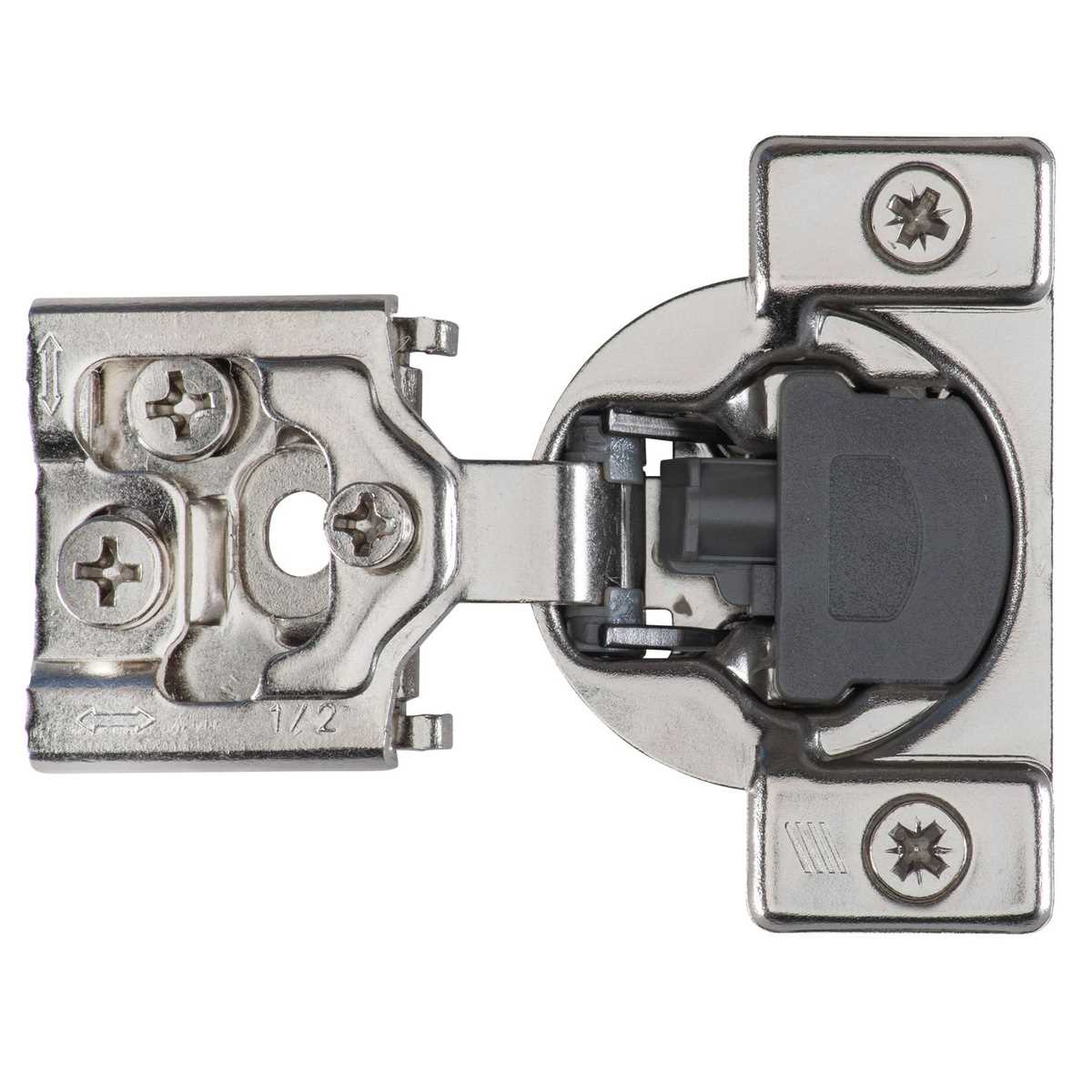

Optimat 3D with Silent System, TB 43, Overlay 3/4“ (19.1)

  • Open Angle: 105 °
  • 6-way-adjustable face-frame hinge
  • Meets and exceeds the minimum requirements of ANSI/BHMA A156.9 standard
  • Integrated Silent System

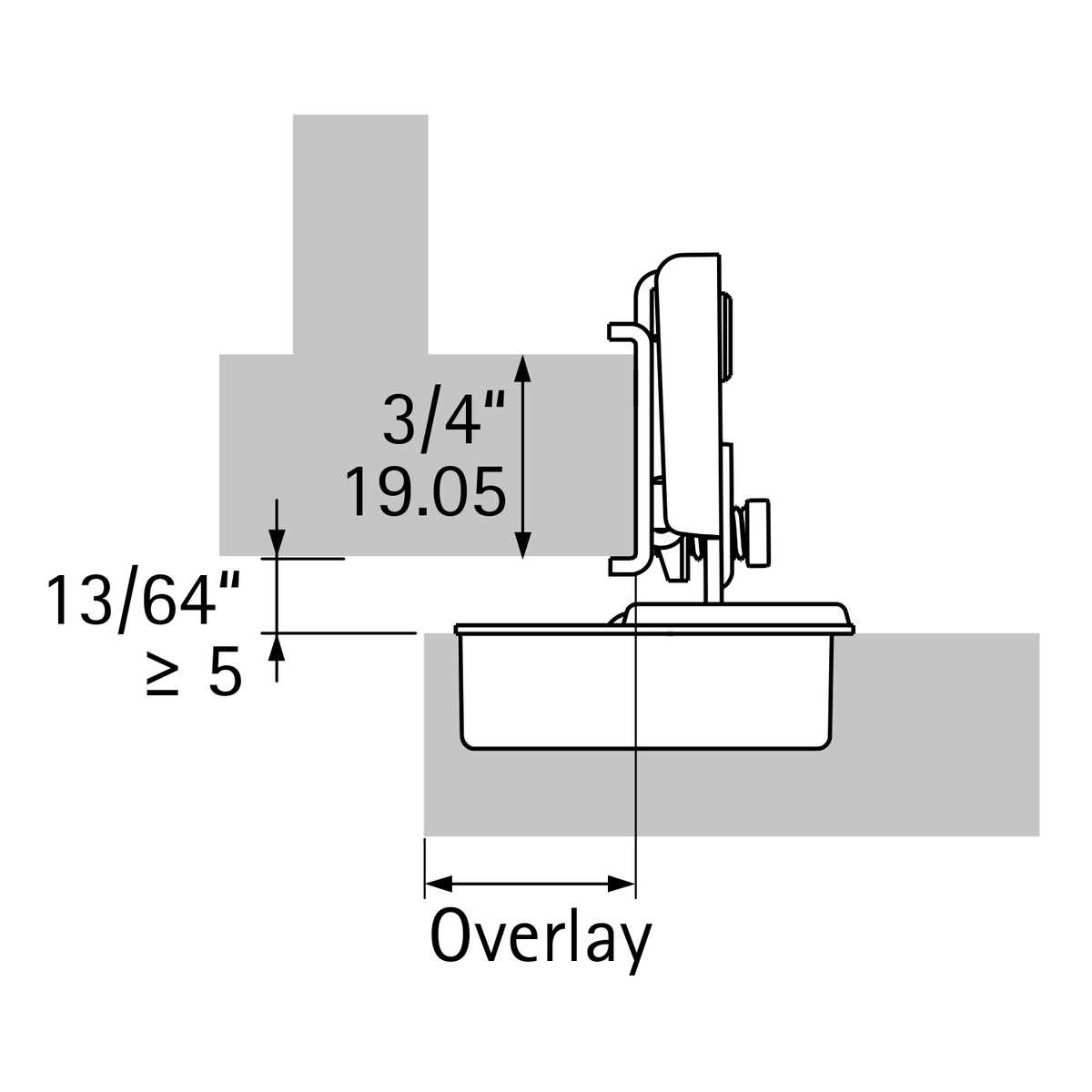

  • For door thickness up to 3/4" (19 mm)

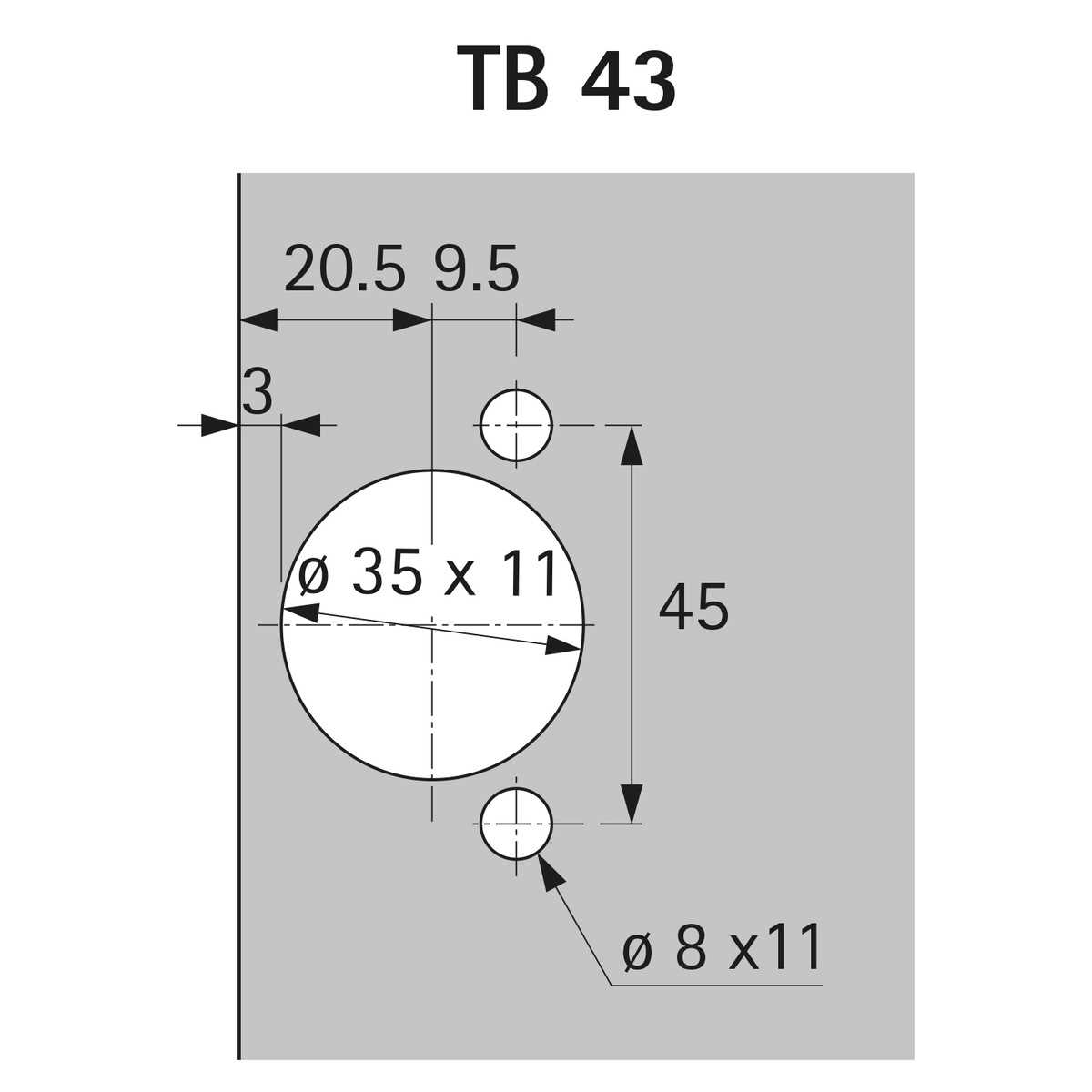

  • Cup diameter 1 3/8” (35 mm)
  • Cup depth (minimum drilling depth) 7/16” (11 mm)
  • Cup distance 1/8" (3 mm)
  • Side adjustment (under 1" overlay) +/- 1.3 mm cam (1" - 1 5/16" overlay) +/- 1.5 mm cam
  • Depth adjustment + 2.6 mm cam
  • Height adjustment +/- 1.8 mm cam
  • Optional: 85 ° angle restrictor
Brand
Hettich
Weight
0.50 lb
Size
