Product Details

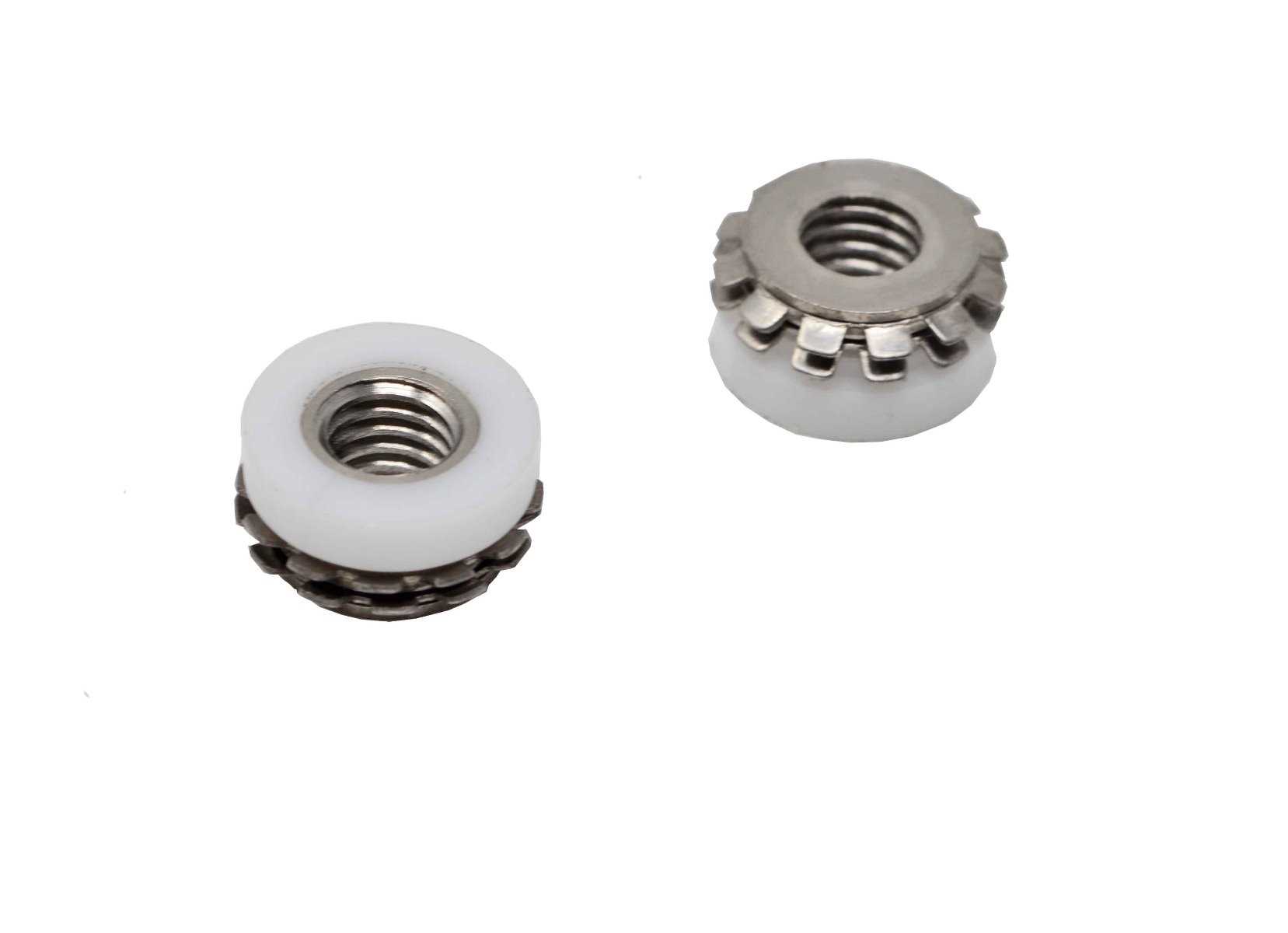

The Keep-Nut IM2S/P1.4-20/H6 is the most-used insert in the 1/4-20 family and the one our install guides and starter kits specify for undermount sink mounting

  • Crowns: 2
  • Thread: 1/4-20 UNC, non-through
  • Minimum Panel Thickness: 8.5 mm (0.33 in)
  • Insert Height: 6 mm
  • Hole Depth: 6.5 mm (0.26 in)
  • Hole Diameter: 12 mm (+0.2 / -0.2 mm)
  • Thread Depth: 5.5 mm
  • Press-In Force: 0.4 kN
  • Rated Pull-Out: 2.5 kN (562 lbf)
  • Materials: 303 stainless bush, 316L stainless crowns, gray polyamide PA6 body
Brand
Chemical Concepts
Weight
0.09 lb
