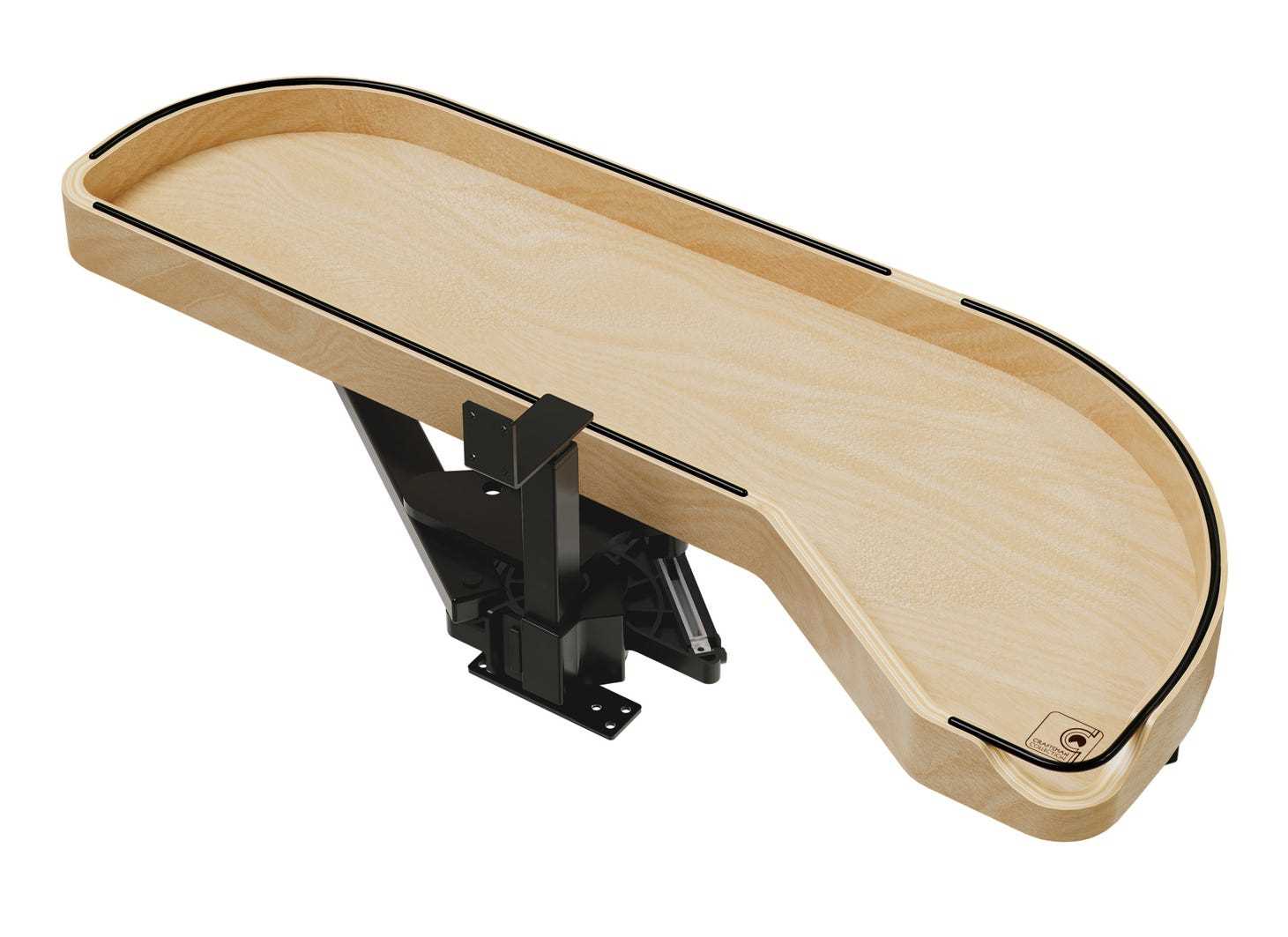

Blind Left/Right Door Wood Single Tier Girasolo 12"

• (1) Girasolo tray, post mechanism, and mounting hardware
• Pulls directly forward, eliminating the need for appliance clearance
• Banded wood rim with recessed black wire accents that double as a handle for effortless operation
• Right-handed mounting, easy installation

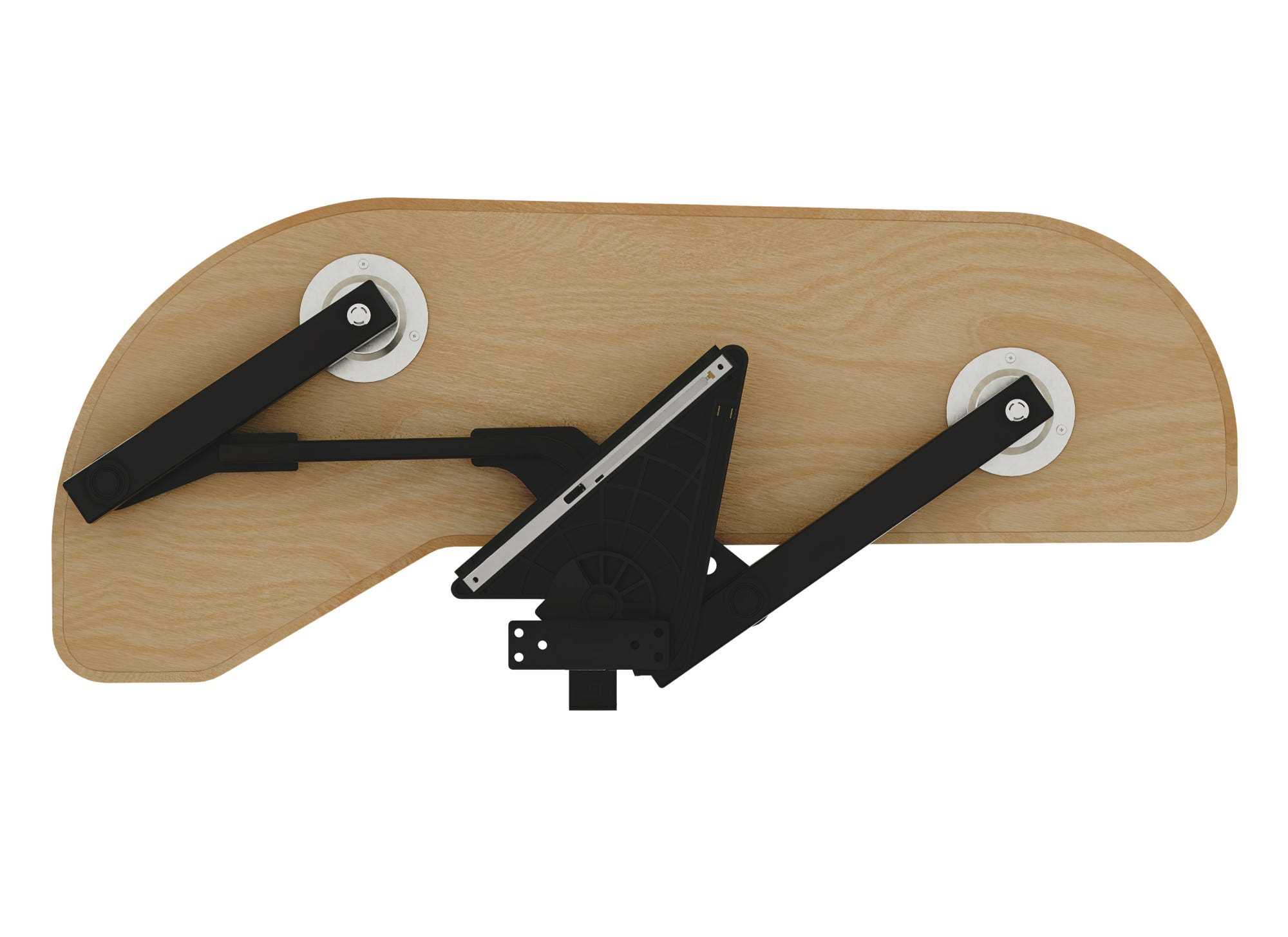

• Glides on a soft-close pivot hardware system
• Designed for 12" base blind cabinet openings
• 5/8" thick maple shelf bottom
• This unit holds 33 lbs. Whole Unit
• Mounts to cabinet floor and side or top; depending on application
• Minimum Cabinet Opening for a Face Frame cabinet is 12.00"W x 22.50"D x 10.50"H
• Minimum Cabinet Opening for a Frameless cabinet is 13.50"W x 22.50"D x 10.50"H

Specifications

• Width (min to max): 33-1/16 "
• Depth (min to max): 14-19/32 "
• Height (min to max):10-7/32"
• Material: Wood
• Color: Light Brown
• Finish: Glossy
• Face Frame Width: 12"
• Face Frame Depth: 22-1/2"
• Face Frame Height: 10-1/2"
• Frameless Width: 13-1/2"
• Frameless Depth: 22-1/2"
• Frameless Height: 10-/2"
• Inset Face Frame Width: 12”
• Inset Face Frame Depth: 22-1/2”
• Inset Face Frame Height: 10-1/2”
• Inset Frameless Width: 13-1/2”
• Inset Frameless Depth: 22-1/2”
• Inset Frameless Height: 10-1/2”
• Blind Application: Right Opening / Blind Left
• Door Mountable: No
• Installation Type: Floor/Front Stile Mounted or Floor/Ceiling Mounted
