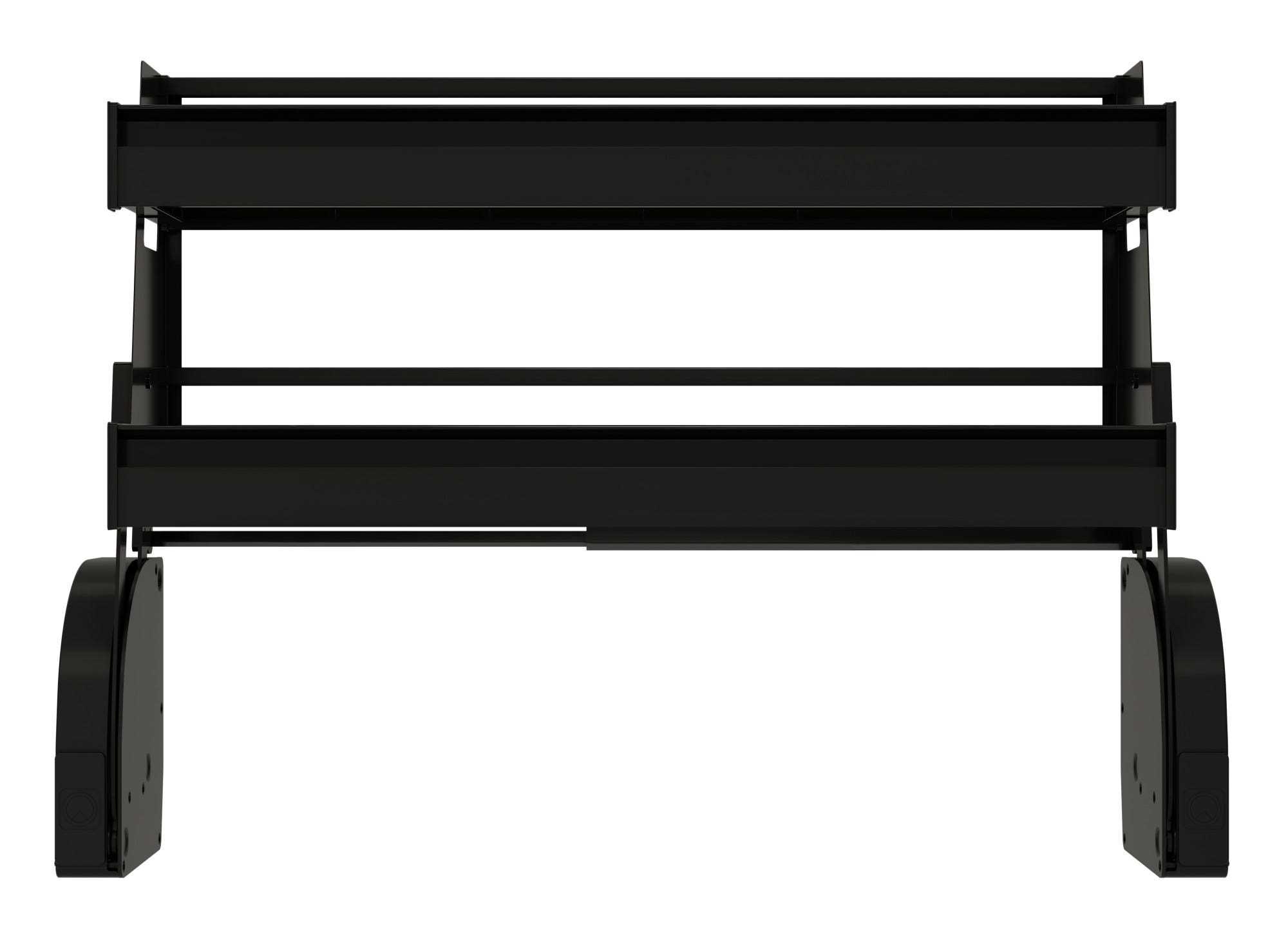

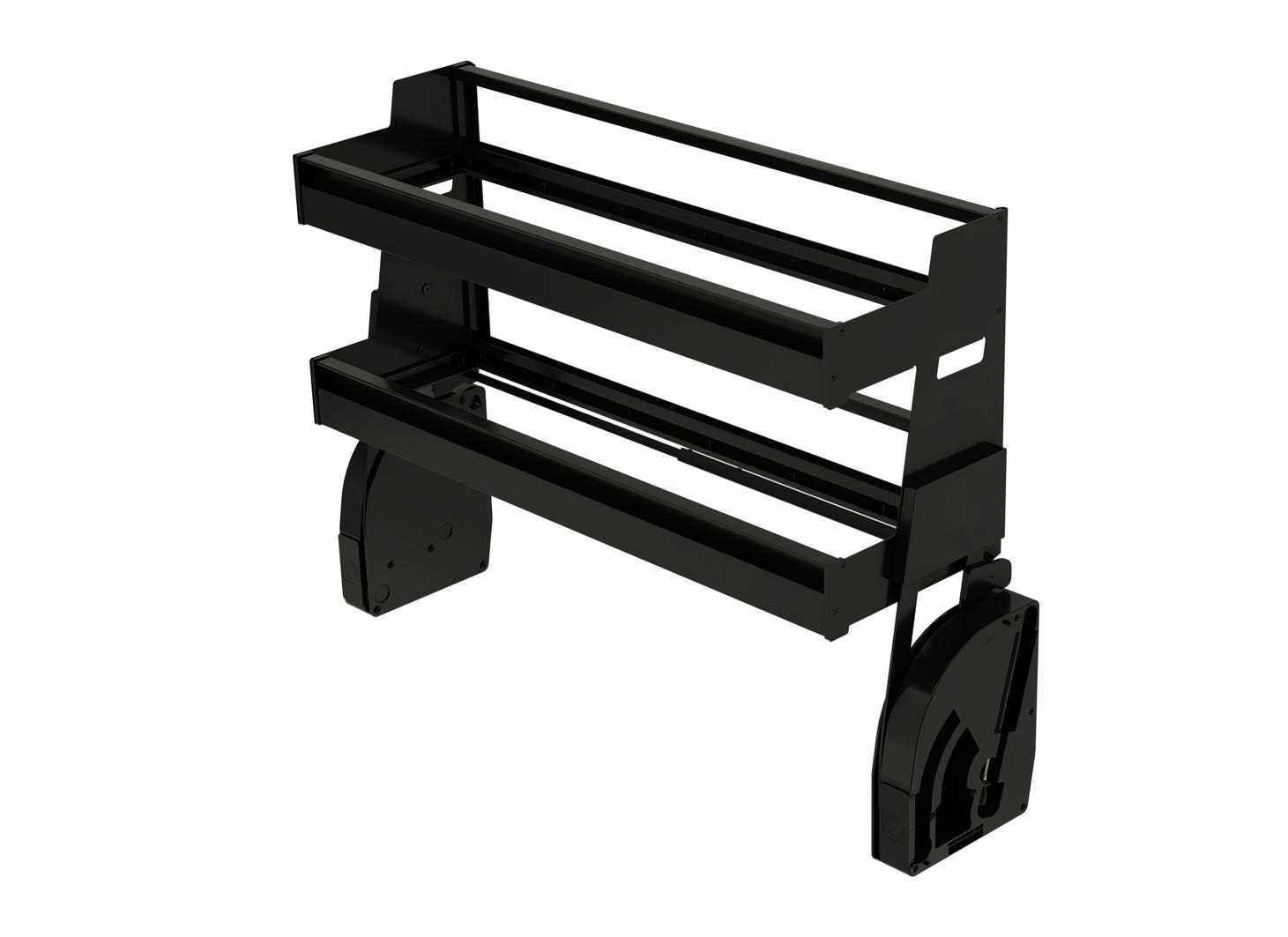

5PDYO Hardware Mechanism, Arms, Extrusions

• Included: (1) Pull-down shelving mechanism and mounting hardware
• Front rail features an integrated handle for easy operation
• Gas-spring assisted lifting/lowering mechanism
• Each shelf can hold up to 20 lbs.
• Trimmable design accommodates wall cabinet openings 14-1/2”-34-3/4"
• Designed for virtually any wall cabinet up to 36” wide
• Black sheet metal construction
• This unit holds 40 lbs. Whole Unit
• Mounts to cabinet sidewalls
• Minimum Cabinet Opening for a Face Frame cabinet is 34.75"W x 10"D x 25.75"H
• Minimum Cabinet Opening for a Frameless cabinet is 34.75"W x 10"D x 25.75"H

Specifications:

• Width (min to max) 16-3/4" to 34-3/4"
• Depth (min to max) 8-27/32"
• Height (min to max) 23-23/32"
• Material Steel
• Color Black
• Finish Anodized
• Face Frame Width 34-3/4"
• Face Frame Depth 10"
• Face Frame Height 25-3/4"
• Frameless Width 34-3/4"
• Frameless Depth 10"
• Frameless Height 25-3/4"
